Wood Processing

Wood Processing

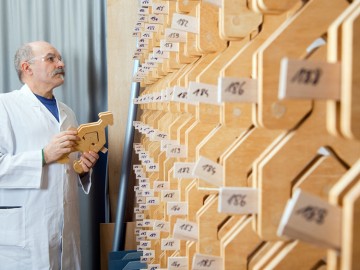

Testing wood adhesives at the WACKER technical center in Burghausen. Here: creep test.

With VINNAPAS® polymer dispersions and GENIOSIL® silane-modified polymers, WACKER offers two technologies for use in formulating modern, high-performance wood adhesives. HDK® pyrogenic silica improves the storage and processing characteristics.

WACKER offers a highly developed range of VINNAPAS® polyvinyl acetate (PVAC) polymer dispersions for wood adhesives from D2 to D4.

VINNAPAS® Polymer Dispersions

WACKER offers a highly developed range of VINNAPAS® polyvinyl acetate (PVAC) polymer dispersions for wood adhesives from D2 to D4. They make ideal solutions for humid and damp areas (e.g. basements and bathrooms) as well as for exterior applications involving direct water contact (e.g. windows). For discoloration-free bonding of sensitive types of wood, we offer VINNAPAS® DPX 271, a water resistant and ultra-low-formaldehyde binder for D3 wood adhesives.

For EPI (emulsion polymer isocyanate) technology, VINNAPAS® vinyl acetate-ethylene (VAE) polymer dispersions are used in the formulation of wood adhesives for water resistance class of JIS K6806.

General Benefits:

  • Excellent for solid wood bonding
  • Excellent water and heat resistance
  • Product range for all water resistance classes (from D2 to D4; can attain the D4 standard with two-component system)
  • High setting speed

Benefits of VINNAPAS® DPX Technology:

  • Ultra-low formaldehyde level of < 5 ppm
  • Discoloration-free

Applications:

Wood-to-wood processing adhesives D2 to D4, e.g. for furniture, wood flooring, veneers, windows and doors.

  • Assembly
  • Edge banding
  • Edge-to-edge gluing
  • Finger jointing
  • Veneer splicing

GENIOSIL® Silane-Modified Polymers (SMP)

GENIOSIL® silane-modified polymers are so versatile they can equally find use in wood adhesives alongside many other adhesive concepts. Wood adhesives formulated with GENIOSIL® SMPs display Shore D strength values, can attain the D4 standard and are yet one component.

Benefits:

  • Isocyanate-, solvent and plasticizer-free
  • Tin-free (possible when using α SMPs)
  • Broad range of flexibility and strength
  • Unique clarity
  • Low viscosity
  • Temperature- and moisture-stable
  • Paintable

Applications:

  • Bonding wood-to-wood
  • Bonding wood-to-metal & further dissimilar materials

HDK® Pyrogenic Silica

HDK® steuert die rheologischen Eigenschaften von Klebstoffen. So können die Fließeigenschaften von Holzleimen, z.B. auf Basis von 1K PU Systemen, gezielt mit hydrophoben HDK® Produkten eingestellt werden. Die dann thixotropierten Systeme lassen sich besser verarbeiten und erleichtern die Anwendung.

Benefits:

  • Anti settling
  • Adjustment of rheology
  • Sag resistance

Applications:

  • Holzleim

Product Recommendations

Table is scrollable
Products
Technical data
BET surface Viscosity Polymer
GENIOSIL® XB 502 - - 1000 1000 Reinforced α-Dimethoxysilane-modified polymer (SMP) for strong bonding Reinforced α-Dimethoxysilane-modified polymer (SMP) for strong bonding
GENIOSIL® XT 50 - - 1000 mPas 1000 mPas Reinforced α-Dimethoxysilane-modified polymer (SMP) for transparent 1K waterproofing membranes Reinforced α-Dimethoxysilane-modified polymer (SMP) for transparent 1K waterproofing membranes
HDK® H13L approx. 110 m²/g[1] approx. 110 m²/g[1] - - - -
HDK® H15 approx. 120 m²/g[1] approx. 120 m²/g[1] - - - -
HDK® N20 175 - 225 m²/g[2] 175 - 225 m²/g[2] - - - -
Legend
[1] BET surface | DIN ISO 9277 DIN 66132 | of the hydrophobic silica,  [2] BET surface | DIN ISO 9277 DIN 66132,  [] Suited,  [] Well suited,  [] Ideally suited

VINNAPAS® vinyl acetate-ethylene (VAE) polymer dispersions show excellent adhesion to PVC and paper films combined with a broad heat resistance range, a wide formulation latitude and processing advantages. They are ideal to wet-laminate decorative PVC and paper film to wooden materials.

Benefits:

  • Excellent adhesion to PVC film for wet lamination
  • High resistance to plasticizers
  • Very good adhesion to difficult substrates
  • Very high setting speed

Applications:

Decorative wet lamination film to chipboards, MDFs and hardboards.

  • PVC sheet to wood lamination
  • Paper sheet to wood lamination
  • HPM (High Pressure Melamine sheet to plywood) lamination

Product Recommendations

Table is scrollable
Products
Technical data
Product properties
Suitability
Wood Processing
Film-to-Wood lamination
Solids content Viscosity, dynamic Glass transition temperature Sustainability Aspects
Film-to-Wood lamination
Suitability
Adhesion
Heat Resistance
Setting Behavior
Water Resistance
VINNAPAS® 400 54.0 - 56.0 % 54.0 - 56.0 % 1800 - 2700 mPa·s 1800 - 2700 mPa·s approx. 0 °C[1] approx. 32.0 °F[1] Produced without APEO - - High High Excellent Medium
VINNAPAS® 400 H 54.0 - 56.0 % 54.0 - 56.0 % 3100 - 4400 mPa·s 3100 - 4400 mPa·s approx. 0 °C[1] approx. 32.0 °F[1] Produced without APEO - - High High High Medium
VINNAPAS® 401 54.0 - 56.0 % 54.0 - 56.0 % 1300 - 2200 mPa·s 1300 - 2200 mPa·s approx. -15 °C[1] approx. 5.0 °F[1] - - - High High High Medium
VINNAPAS® 920 54.0 - 56.0 % 54.0 - 56.0 % 800 - 2000 mPa·s 800 - 2000 mPa·s approx. -20 °C[1] approx. -4.0 °F[1] - - - Excellent Medium Medium High
VINNAPAS® EAF 67 58 - 62 % 58 - 62 % 4500 - 9500 mPa·s 4500 - 9500 mPa·s approx. -35 °C[1] approx. -31.0 °F[1] - - - Excellent Medium High Medium
VINNAPAS® EAF 68 58 - 61 % 58 - 61 % 4500 - 9500 mPa·s 4500 - 9500 mPa·s approx. -35.0 °C[1] approx. -31 °F[1] - - - High Medium High Medium
VINNAPAS® EP 11 (CGN) 49 - 51 % 49 - 51 % 4000 - 6000 mPa·s 4000 - 6000 mPa·s approx. 3 °C[2] approx. 37.4 °F[2] - - - High High High High
VINNAPAS® EP 1400 - - 1700 - 2400 mPa·s 1700 - 2400 mPa·s approx. 0 °C[1] approx. 32.0 °F[1] Low formaldehyde content, Produced without APEO Medium Medium High High Good
VINNAPAS® EP 4600 62.5 - 64.0 % 62.5 - 64.0 % 200 - 800 mPa·s 200 - 800 mPa·s approx. 5 °C[2] approx. 41.0 °F[2] - - - High Medium High Excellent
VINNAPAS® EP 6300 62.0 - 64.0 % 62.0 - 64.0 % 600 - 1500 mPa·s 600 - 1500 mPa·s approx. 0 °C[1] approx. 32.0 °F[1] - - - Excellent Medium High Medium
VINNAPAS® EP 7000 69.5 - 71.5 % 69.5 - 71.5 % 1200 - 2700 mPa·s 1200 - 2700 mPa·s approx. -3 °C[1] approx. 26.6 °F[1] Low formaldehyde content, Produced without APEO - - Excellent Excellent Excellent High
Legend
[1] Glass transition temperature | DSC, specific method,  [2] Glass transition temperature | specific method,  [] Suited,  [] Well suited,  [] Ideally suited

VINNAPAS® vinyl acetate-ethylene (VAE) polymer dispersions are used in the formulation of adhesives for 3D vacuum membrane press lamination, either by themselves or in blends with polyurethane dispersions.

Benefits:

  • Excellent heat resistance and cohesion
  • Very high setting speed
  • High resistance to plasticizers
  • Excellent compatibility with polyurethane dispersions

Applications:

  • Decorative wet lamination to 3-dimensional chipboards, MDFs and hardboards by using vacuum membrane press process.

Product Recommendations

Sorry, no results are available for your filter criteria and selected country. Please contact one of our sales offices.
